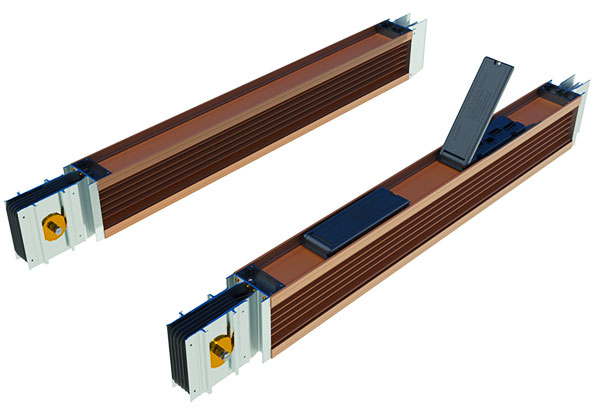

Straight Element C-way / X-way Busduct uses insulation with a thermal class B (Optional class F) rating 155°C for each phase. Busduct housing is constructed with a lightweight and rugged, all-aluminum extruded housing. There are no seams or welds across the top or bottom of the housing. There are no fastening bolts or screws that penetrate the housing to enter the Busbars.
It can be used at the voltage range of AC 1000V or less, and the current range between 630A to 6400 A

Feeder elements:
– standard length: 3 m
– special length: from 0.5 m to 3 m

Distribution elements with tap-off outlets:
– standard length: 3 m
– standard tap-off sockets: spaced at 850 mm intervals on both sides
– Busduct system comes with standard IP54 rating.

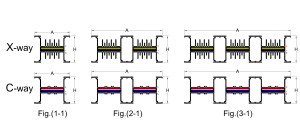

 X-way Ampere (A) Dimension (mm) Weight(g/m)  Fig.
A H 3W 4W 4W+50%E 4W+100%E
 CU 630 110  120 9,228 10,575 11.248 11,920  Fig.(1-1)
800 140 12,950 15,100 16,150 17,250
1000 160 17,300 20,000 21,350 22,700
1250 180 19,883 23,100 24,700 26,300
1600 210 24,235 28,265 30,300 32,300
2000 320 34,810 40,210 42,910 45,610  Fig.(2-1)
2500 360 39,976 46,410 49,610 52,810
3200 420 48,680 56,740 60,810 64,810
4000 540 59,909 69,560 74,360 79,160  Fig.(3-1)
5000 630 72,965 85,055 91,160 97,160
 C-way Ampere (A) Dimension (mm) Weight(g/m)  Fig.
A H 3W 4W 4W+50%E 4W+100%E






 AL

 630 140  120 8.840 9.920 10.460 11.000  Fig.(1-1)
800 140 9.688 10.984 11.632 12.280
1000 160 10.860 12.480 13.290 14.100
1250 180 12.032 13.976 14.948 15.920
1600 210 13.890 16.320 17.535 18.750
2000 320 21.720 24.960 26.580 28.200  Fig.(2-1)
2500 360 24.064 27.952 29.896 31.840
3200 420 27.780 32.640 35.070 37.500
4000 540 36.096 41.928 44.844 47.760  Fig.(3-1)
5000 630 41.670 48.960 52.605 56.250
